Name：Heavy Duty 3 Piece Construction Wheels

Pnum：Pro201213022315

Price：

Time：2012/1/30 22:07:06

Order：Order Online >>

>>Product Details

Zoom In

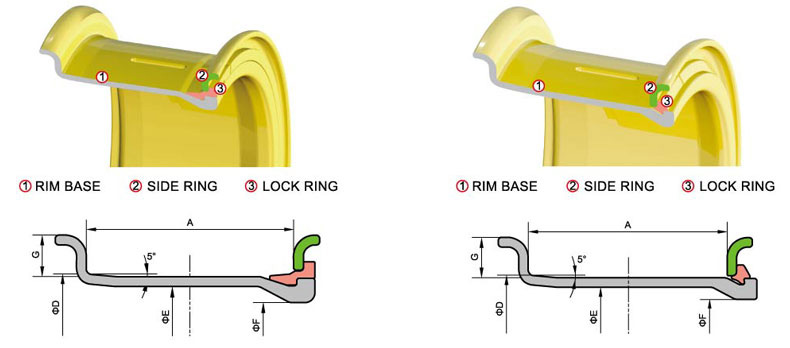

Rim Size	Recommended	Dimensions （mm）					Completed Rim
Rim Size	Tire	A	G	D	E	F	WT kg
20-8.5/1.7	12.00-20	216	43	514.4	482	458	65
20-10.00/1.7	14.00-20	254	43	514.4	482	458	76
24-8.5/1.7	12.00-24	216	43	616	585	560	77
24-10.00/1.7	14.00-24	254	43	616	585	560	81
24-8.5/2.0	12.00-24	216	51	616	585	560	82
24-10.00/2.0	14.00-24	254	51	616	585	560	86
