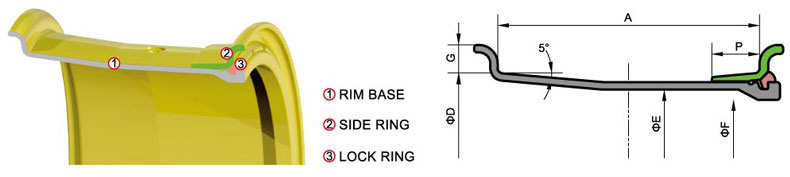

Rim Size	Recommended	Dimensions （mm）						Completed Rim
	Tire	A		P	D	E	F	WT kg
20-8.5/1.7	12.00-20	216	43	60	514.4	470	446	57
20-10.00/1.7	14.00-20	254	43	60	514.4	470	446	67
20-13.00/1.0	16/70-20	330	25.5	50	512.8	466	444	79
20-8.0/2.0	11.00-20	203	51	60	514.4	466	444	62
21-17.00/2.0	20.5-21	432	51	65	533.4	488	456	98
21-18.00/1.7	24.00-21	458	43	65	533.4	488	456	101
22-17.00/2.0	20.5-22	432	51	65	558.8	515	484	110
23-11.00/2.0	14.00-23	280	51	65	585	540	510	103
23-18.00/2.0	24.00-23	458	51	65	585	540	510	122
24-8.5/1.7	12.00-24	216	43	60	614.4	570	546	74
24-10.00/1.7	14.00-24	254	43	60	614.4	570	546	78
24-11.25/2.0	16.00-24	286	51	60	616	570	546	88
25-8.5/1.5	13.00-25	216	38	50	635	590	563	86
25-10.00/1.5	14.00-25	254	38	65	635	590	563	94
25-12.00/1.3	15.5-25	305	33	60	635	590	563	89
25-14.00/1.5	17.5-25	355.5	38	65	635	590	563	98
25-17.00/1.7	20.5-25	432	43	65	635	590	563	113
25-17.00/2.0	20.5-25	432	51	65	635	590	563	117
25-19.50/2.5	23.5-25	495	63.5	65	635	590	563	125
25-22.00/3.0	26.5-25	559	76	80	635	580	550	180
25-25.00/3.5	29.5-25	635	89	100	635	580	550	216
26-20.00/1.1	23.1-26	508	28.6	50	665.2	620	590	139
